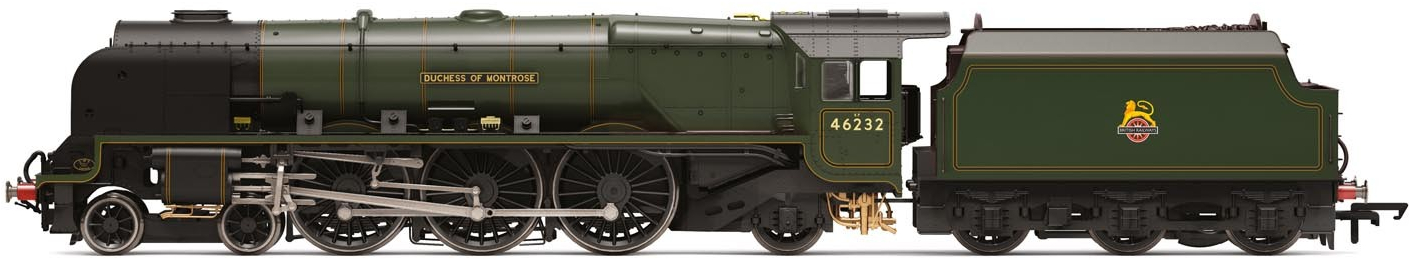

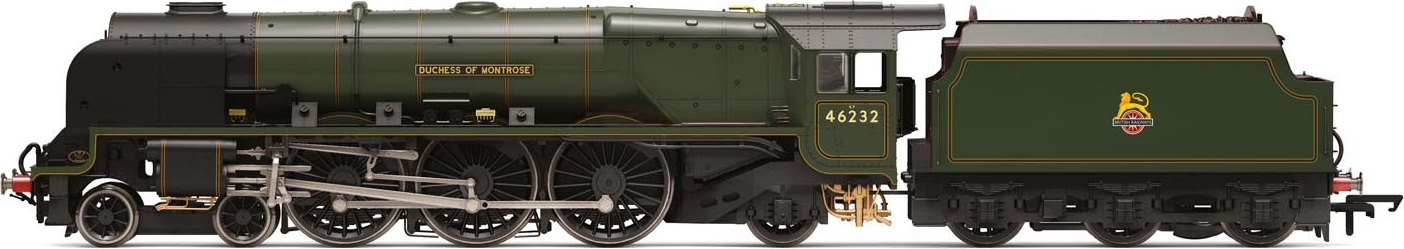

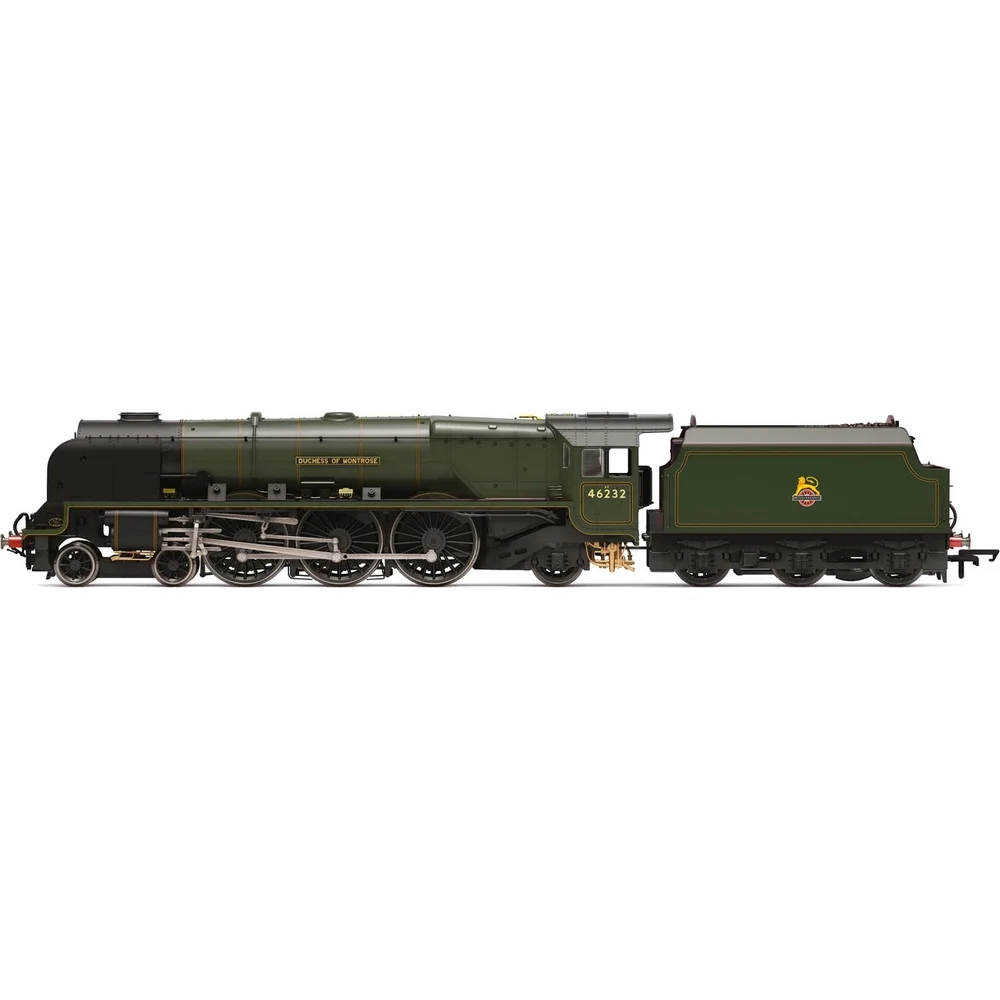

Hornby R3642
London, Midland & Scottish Railway 8P Coronation 46232 Duchess of Montrose
Locomotive
- Operator
- British Railways
- Livery
- Green with Early Emblem
- Running Number
- 46232
- Name
- Duchess of Montrose
- Length
- 299 mm
- Era
- 4
- DCC
- Ready (8 pin)
- Motor
- 5 pole skew wound
- Coupling
- NEM
- Curve
- 2nd Radius (438mm) +
Class
- Name
- London, Midland & Scottish Railway 8P Coronation
- Traction
- Steam
- Built
- 1937-1948
- Total Produced
- 38
Prototype
- Ordered By
- Built By
- Built At
- Built
- Withdrawn
- Length of Service
- Running Numbers
- Names
Catalogue
- Builder
- Hornby
- Catalogue Number
- R3642
- Category
- Steam Locomotives
- Scale
- OO
- Finish
- Pristine
- Year
- 2019
- Pages
-
2019 (59)
2020 (101)
- Service Sheet
- 438D
- Spares
-
X4026 (Motor assembly)
X8847 (Motor retainers)
X7320 (Valve gear set)
X7365 (Bogie assembly)
X7353 (Coupling rods)
X7355 (Loco chassis bottom)
X7360 (Gear set)
X7362 (Draw bar)
X7367 (Tender chassis assembly)
X7364 (Tender chassis bottom and screws)
X9958 (Tender connetion)
X6113 (Wires to tender conection)
X13409 (Accessory pack)
X7358 (Cylinder block and motion bracket)
X7359 (Loco wheel set)
X7363 (Dummy pony truck)
X7372 (Tender wheel set)
X9289 (Coupling units)
X9084T (PCB socket and pins)
X6709 (Loco pick ups)
